FETAL MONITOR
CMS-800G
CMS-800G - Features
- 8.4" color TFT LCD large Screen
- The world's advanced DSP technology Double event mark
- Three-in-one probe, reduce the line winding. Code- operation, easy and convenient
- 12 Hours Data & Waveform Storage and review
- Twins monitoring Function Option.
- Built in PC Network can be connected to the central monitoring system. (Optional)
Specifications
- Power Consumption: < 20W
- Dimension: 320 mm (L) X 260 mm (W) X 80 mm (H)
- Net Weight: 3.2 KG
Technical Parameters
- Probe: 9 wafer, wide wave Beam, Pulse working mode hig sensitivity
- Ultrasound Intensity: < 5mW/cm2
- Recorder: Thermal Printer
- Recorder Paper: Z-fold, thermal paper
- Printing width: 112 m.m.
- Toco Rang: 0-100 (relative unit)
- Display: FHR, TOCO, FM, Mark, Time, Freeze, Replay
- Power: AC 220V, 50HZ

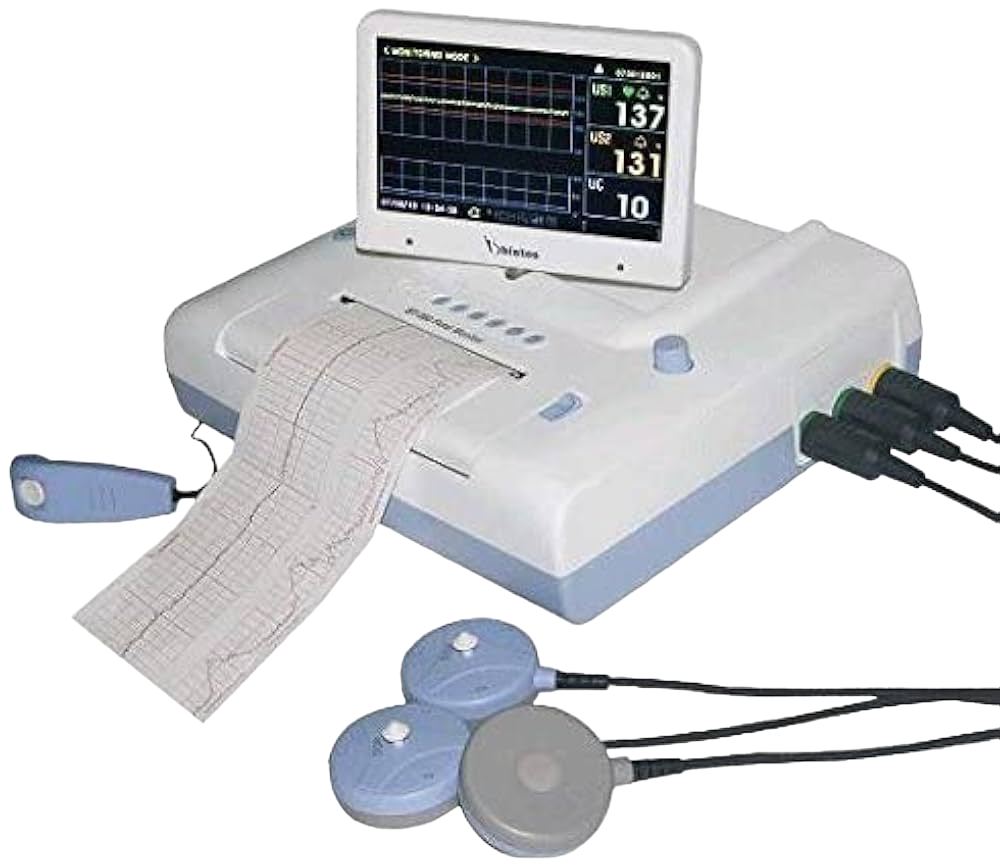

BISTOS-BT-350
(MADE IN KOREA FDA & CE APPROVE)Features
- 7" wide TFT color LCD display
- Up to 150 patients data saving
- Fetal heart sound play and record in PC
- Rotation screen
- Waterproof Probe
- GE/Philips Paper Compatible
- Interpretation Function
- Multiple language support
- Built-in quick guide (LCD Type) Waterproof probe
- Twins Probe Available
Specifications
- Power Consumption: < 20W
- Dimension: 96 mm (H) X 326 mm (L) X 276mm (D)
- Net Weight : 5.5 KG
- Working Temperature : 10-40 C, Relative Humidity 10-80%
- External Link: RS-232C
- Trend: USB Data Saving
- PC Interface (Central Monitoring System)
- Optional: Rechargeable Battery

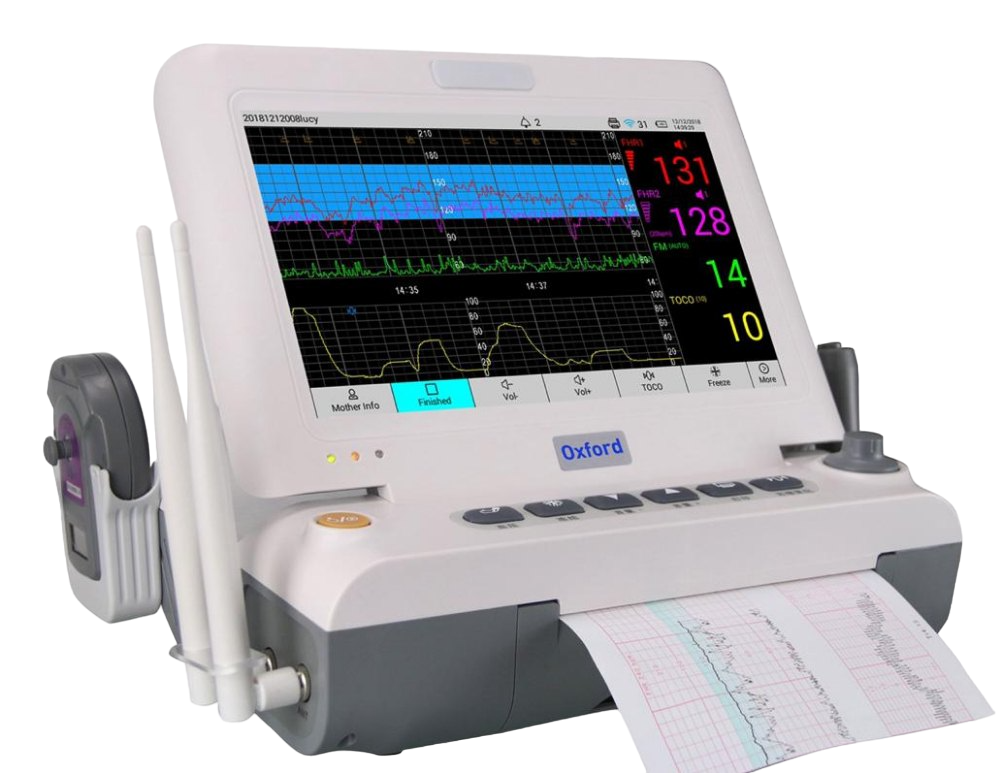

WIRELESS FETAL MONITOR
Specification
- Lightweight, space-saving, easy operations.
- Alarms for fetal tachycardia or bradycardia, low power and printing paper missing.
- 10.1inch TFT color screen with 1024X600 resolution and folding up to 90 degrees.
- 152 mm thermal printing paper.
- DSP technology, real-time identify and measurement for FHR, accurate and reliable results.
- The probe is built-in FAS (Fetal Acoustic Stimulator) and support water-proof and highly sensitive.
Specifications
- It features an automatic grading function.
- It features a fetal movement displaying and printing function - print, manual and automatic fetal movement recording are available.
- 36 hours data storage which can be playback and printed.
- Special patient event and clinical event marking button.
- It has a built-in 16.8V lithium battery applicable for both AC and DC.
- It supports both cable and wireless network connection and can be used with the central monitoring station to set up a network system.
- Apply voltage 100V-240V, 50Hz/60Hz.
