Syringe Pump
Syringe Pump
MDK Med High Pressure Syringe Pump

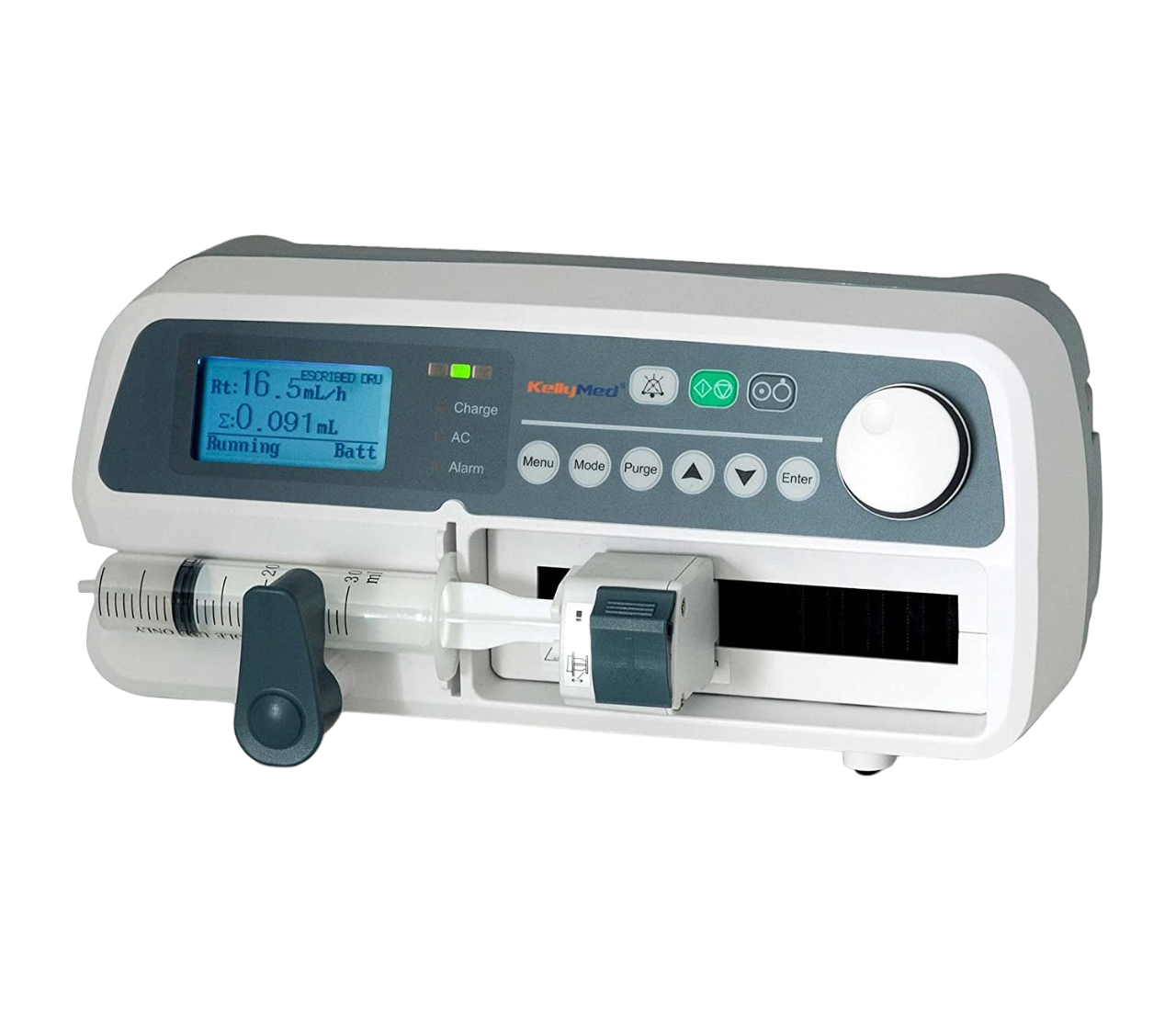

KL-602 Syringe Pump
-
Syringe Size
2 ml,5 ml,10 ml,20 ml,30 ml,50/60 ml
-
Volume Infused
0.1~9999.9 ml, Step by 0.1 ml
-
Flow Rate
2ml:0.1-100ml/h;5ml:0.1-150ml/h; 10ml:0.1-400ml/h;20ml:0.1-600ml/h; 30ml:0.1-1000ml/h;50/60ml:0.1-1800ml/h;
-
Accuracy
±2%
-
Bolus Rate
2 ml Syringe: 100 ml/h;5 ml Syringe: 150 ml/h;
10 ml Syringe: 400 ml/h;20 ml Syringe: 600 ml/h;
30 ml Syringe: 800 ml/h;50/60 ml Syringe: 800 ml/h
-
KVO Rate
Flow rate ≥ 10ml/h: KVO rate 3 ml/h
Flow rate ≥1ml/h and < 10ml/h: KVO rate 1 ml/h
Flow rate < 1ml/h: KVO rate = Flow rate
-
Alarm
Battery exhausted alarm, Low battery alarm, Near end alarm, VTBI finished alarm, Incorrect syringe handle installation alarm, Syringe size error, Plunger error, Pause overtime alarm, Occlusion alarm, Malfunction alarm, A.C. and D.C. Off
-
Occlusion Pressure
Two levels: High, Low H: 100 kpa; L: 50 kpa
-
Power
A.C. 100-240V 50/60Hz, Input D.C. 15V/2A Output, Input Voltage to Device
-
Power and Battery
55VA Max; Battery Voltage 10.8V; Support 6 Hours normal operation
-
Classification
Class II, Type CF, IPX2
-
Dimension
278x145x106mm (W x D x H):1.5kg
